An AI agent is more than an LLM generating an answer. It combines reasoning with memory, planning, tools, knowledge, orchestration, and guardrails to work toward a goal and take action along the way.

Consider an enterprise customer-support agent. A customer asks why a payment failed. Instead of simply explaining possible reasons, the agent can understand the request, retrieve relevant account and transaction information, determine what happened, check business rules, and use an approved business system to resolve the issue.

The model provides the intelligence, but the architecture around it gives the system the ability to act.

That distinction is becoming increasingly important as organizations move AI beyond chatbots and experiments. McKinsey's 2025 State of AI survey found that 62% of respondents said their organizations were at least experimenting with AI agents. Of those, 23% said their organizations were scaling an agentic AI system somewhere in the enterprise, while another 39% had begun experimenting with agents. McKinsey: The State of AI in 2025

Understanding agentic AI architecture helps you see what actually makes an AI agent work, how its components interact, and why architecture matters when moving from an experiment to a production system.

TL;DR: The Core Components of an AI Agent

The main components of an AI agent include:

• Reasoning engine: Interprets the user's goal and determines what to do next.
• Memory and context: Provides relevant information from the current task or previous interactions.
• Planning and orchestration: Breaks complex goals into actions and coordinates execution.
• Tools and integrations: Allow the agent to retrieve information and act on external systems.
• Knowledge and retrieval: Connect the agent with relevant and current information.
• Guardrails and security: Keep actions within defined boundaries.
• Observability and evaluation: Show what happened and whether the outcome was good enough.

The value of agentic AI does not come from one component. It comes from how these components work together.

What Is Agentic AI Architecture?

An agentic AI architecture serves as the foundational structural framework linking an artificial intelligence model to the key capabilities required to pursue goals, make decisions, access external data, interact with enterprise systems, and dynamically adapt based on incoming outcomes.

Unlike traditional AI solutions that rely on fixed, predefined logic, an agentic framework dynamically calculates its next actions by continuously evaluating its goal, current context, state of the task, and tool output.

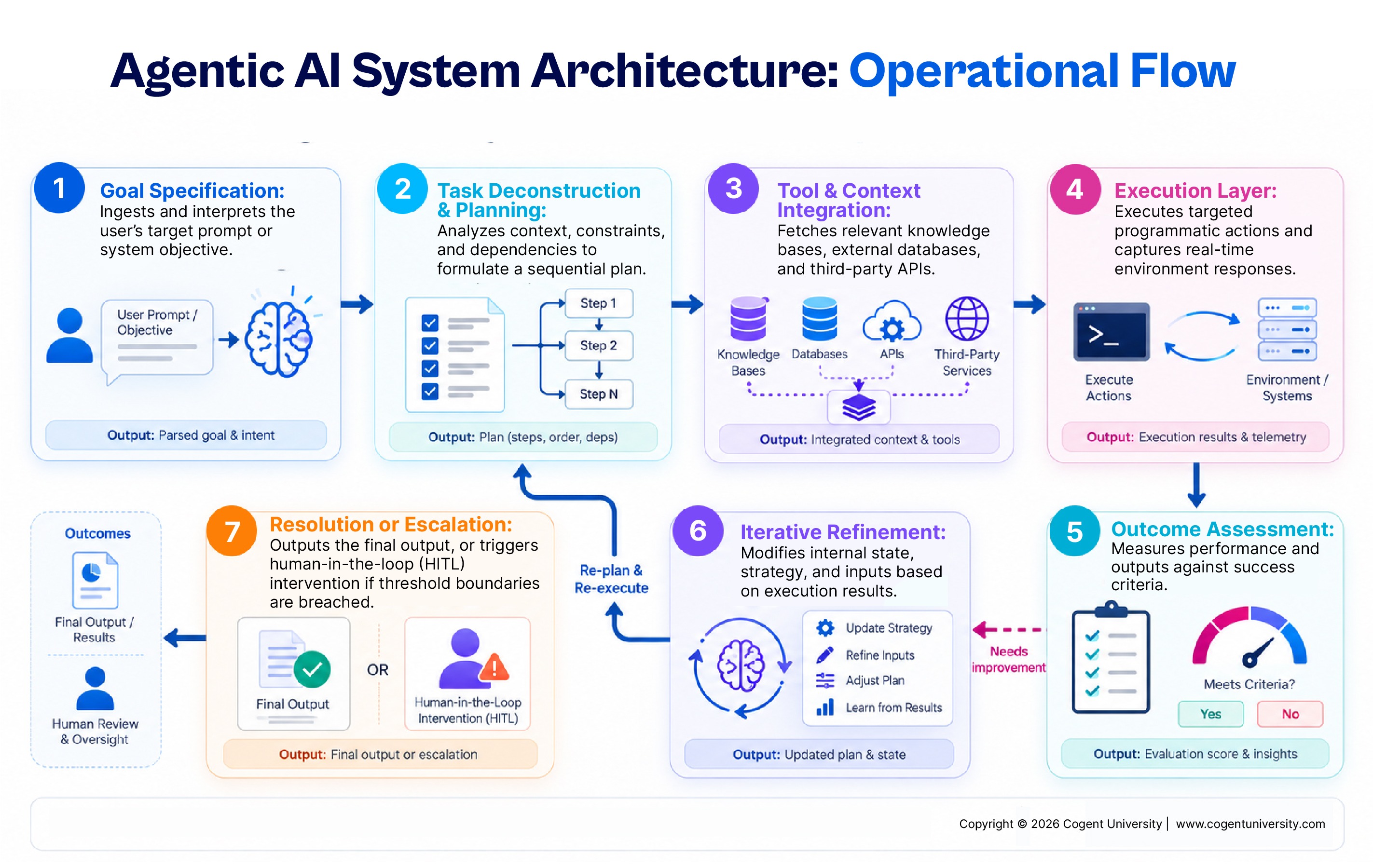

A high-level view of an AI agent system architecture follows a multi-step flow:

User Goal → Agent Execution → Reasoning & Planning → Knowledge & Tool Retrieval → Execution Result → Evaluation → Next Action → Final Response

Crucially, execution isn't restricted to a single interaction cycle. The system can iteratively rerun this process until it produces a satisfactory result, reaches predefined boundaries, or requires human intervention.

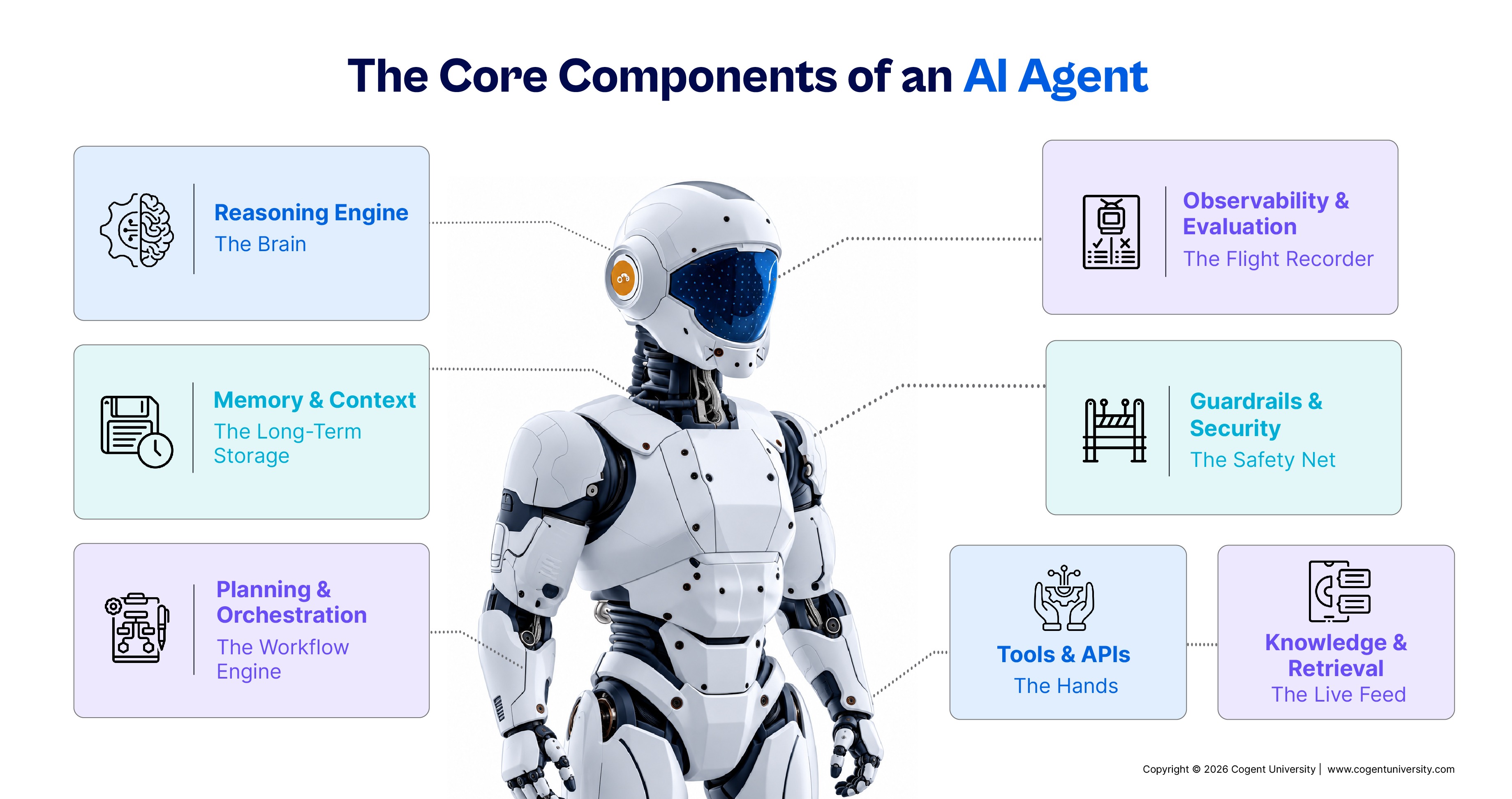

The Core Components of an AI Agent

Building an effective AI agent requires more than just choosing a powerful foundation model and writing a clever prompt. While the language model acts as the brain, it needs a complete surrounding architecture to actually get things done.

Here is a breakdown of the core components that turn an LLM into a fully functioning, action-oriented agent:

‍

• Reasoning Engine: The core LLM interprets user intent, weighs options, and figures out the next steps. However, the model only decides what should happen, the surrounding architecture determines if it actually can.
• Memory & Context: Short-term memory tracks the active task so users don't have to repeat themselves, while long-term memory preserves relevant history across interactions. The secret is sending relevant context, not everything, to avoid noise and high latency.
• Planning & Orchestration: Planning breaks a massive objective down into manageable, sequential steps. Orchestration coordinates how information flows between the model, retrieval systems, and tools while handling errors, retries, and timeouts.
• Tools & APIs: This is what transforms a chatbot into an active system, allowing it to connect to CRMs, databases, and enterprise APIs. Because every tool introduces risk, permissions must be strictly limited to what the job requires.
• Knowledge & Retrieval: Unlike memory (which tracks conversation history), retrieval uses RAG to pull current, external data, like company policies or product specs, into the agent's workflow when information changes frequently.
• Guardrails & Security: Autonomy needs boundaries. Enterprise agents require data controls, input validation, rate limits, and defenses against prompt injection. Sensitive actions should always require human sign-off rather than happening automatically.
• Observability & Evaluation: Teams need visibility into more than just basic uptime. Observability tracks tool calls, failures, and costs, while evaluation ensures the agent followed the right policies and reached a genuinely good outcome.

‍

How the Components Work Together: An AI Agent in Action

Consider an enterprise IT service desk agent.

Step 1: Receive the request

An employee reports that they cannot access an internal application.

Step 2: Understand the goal

The reasoning model identifies the problem and determines what information it needs.

Step 3: Retrieve context

The agent checks relevant employee, application, and previous ticket information.

Step 4: Plan the next action

Based on that context, it determines whether the issue can be resolved automatically.

Step 5: Use a tool

The orchestrator calls the appropriate identity or IT service API.

Step 6: Evaluate the result

The agent checks whether the action actually succeeded instead of assuming it worked.

Step 7: Respond or escalate

If the issue is resolved, the agent confirms the outcome. If approval is required or the issue cannot be safely resolved, it routes the case to a human.

The workflow can be represented as:

1. User
2.  Agent Interface
3.  Reasoning Model
4.  Memory/Retrieval
5.  Planner/Orchestrator
6.  Tools/APIs
7.  Evaluation & Guardrails
8.  Response

This is what makes an agent different from a simple chatbot. It can interpret a goal, gather context, decide what to do, take an action, evaluate the result, and determine what should happen next.

Distinguishing Agentic AI Architecture from Traditional LLM Applications

While both systems can run on the exact same underlying LLM, they differ in the surrounding infrastructure and their intended purpose.

Standard LLM applications focus on producing content, answering prompts, or summarizing input text. In contrast, agentic architecture equips the model with tools, external memory, and goal-oriented reasoning so it can take real-world actions and adapt to feedback dynamically.

However, an agentic framework is not necessary for every task.

If a straightforward, predictable workflow addresses the user's need, introducing autonomous agency only adds unwanted complexity. Agentic design is best reserved for scenarios involving non-static environments, multi-step decision-making, integration with external tools, or objectives that static logic cannot resolve.

Ultimately, optimal system design is defined by suitability to the problem, not maximum autonomy.

Why Agentic AI Architecture Matters for Enterprise Deployment

As agents gain access to business data and systems, architecture affects much more than technical performance. It influences security, reliability, scalability, cost, compliance, user experience, and operational risk.

McKinsey's 2025 research found that 88% of respondents reported regular AI use in at least one business function, but nearly two-thirds said their organizations had not yet begun scaling AI across the enterprise. The research also found that no more than 10% of respondents reported scaling AI agents in any individual business function.

That gap highlights an important point: having access to AI is not the same as having a production-ready AI system.

A prototype can demonstrate what an agent could do. A production system has to define what it should do, what it is allowed to access, how failures are handled, and how performance is measured.

This challenge is not unique to agentic AI. IBM's Global AI Adoption Index found that 42% of surveyed enterprise-scale organizations had actively deployed AI, while another 40% were still exploring or experimenting with it. Among organizations already using or exploring AI, 59% said they had accelerated their AI investments or rollout.

The numbers reinforce why architecture matters. Moving from experimentation to dependable deployment requires more than connecting a model to an application.

Key Considerations for Designing an Agentic AI Architecture

Start with the core business problem before selecting models or integrating additional APIs.

Consider the following operational questions:

• Which specific decisions or tasks will be delegated to the agent?
• What data inputs and context are required?
• Which external tools and integrations should be accessible?
• Where is human oversight and authorization mandatory?
• How will performance and task outcomes be evaluated?
• What mechanisms will track system failures, response latency, and operational costs?
• What fallback procedures exist when the agent cannot safely execute a task?

Addressing these questions avoids a frequent pitfall: engineering complex technical solutions prior to clearly establishing the problem.

Optimal architecture relies not on maximum model power or tool volume, but on equipping the agent with precisely the capabilities needed to reach its objective safely and efficiently.

The Future of Agentic AI Is Not Just More Autonomy

Agentic systems are evolving toward better tool use, more reliable planning, multi-agent workflows, stronger evaluation, tighter security controls, and deeper integration with enterprise systems.

But autonomy should not become the goal by itself.

The real goal is to make agents useful when tasks are complicated, reliable when conditions change, and controllable when something goes wrong.

That distinction will become increasingly important as organizations move agents into workflows where mistakes can affect customers, employees, finances, or sensitive data.

An agent that can take dozens of actions but cannot be trusted to take the right one is not meaningful progress.

Conclusion: Architecture Is What Turns an AI Model Into an Agent

An AI agent is not simply an LLM with a clever prompt.

It is a system in which reasoning, memory, planning, knowledge, tools, orchestration, security, and evaluation work together to accomplish a goal.

For your organization, the right architecture can determine whether an AI agent remains an impressive demo or becomes something employees and customers can actually rely on.

The model matters. But the system around the model is what gives that model the ability to operate as an agent.

Explore Agentic AI with Cogent University

Master the full agent lifecycle through hands-on training in AI architecture, testing, and real-world performance monitoring.

A course alone is not enough. Take the next step today.

‍

FAQs

1. What is agentic AI architecture?

Agentic AI architecture is the framework that connects an AI model with memory, planning, knowledge, tools, orchestration, security, and evaluation capabilities.

2. What are the core components of an AI agent?

The core components include the reasoning engine, memory and context, planning and orchestration, tools and APIs, knowledge and retrieval, guardrails, and observability and evaluation.

3. Is an LLM the same as an AI agent?

No. An LLM generates and interprets content. An AI agent combines a model with additional components that allow it to access information, use tools, pursue goals, and take controlled actions.

4. Why do AI agents need tools?

Tools allow agents to access current information and perform actions through external applications, databases, APIs, and enterprise systems. They connect the agent's decisions to real-world actions.

5. What makes an AI agent production-ready?

A production-ready agent needs reliable performance, controlled tool access, security, evaluation, observability, failure handling, and appropriate human oversight. It should also have clearly defined boundaries for what it can and cannot do.

‍
